Stainless Steel Pipe
We Make Quality
Stainless Steel Pipe
Radiant Metal provides the best quality of Stainless Steel Tubes manufactured from Jindal raw material. We offer welded pipes which are designed to perform in various application and industries as per the requirement.

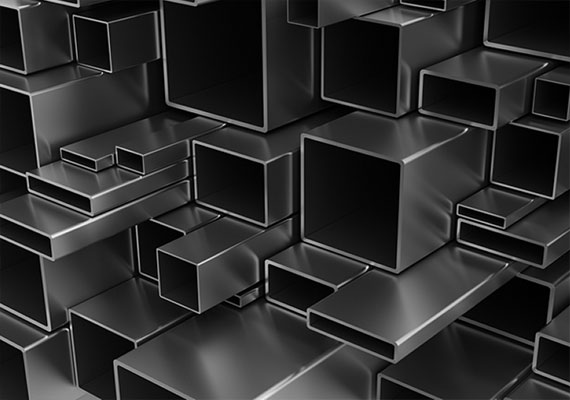

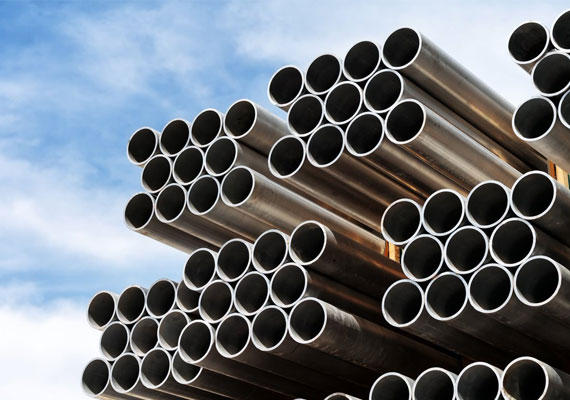

Radiant Steel Pipes are famous for its corrosion resistance, weldability and fast cleanability characteristics. 200 series (J1/J2/J3/J4 etc) & 300 series (304/316 etc) grades stainless steel tubes is the most demanding and widely used tubes for its formability and ductility. Stainless steel tubes are available in round, square and rectangle shape for structural purposes and for the application that range from aesthetic to functional utility.
Stainless steel tubes supplied by Radiant Metal can be available after fine polish as per the requirement, specially designed for residential and commercial applications with mirror polishing of tubes.
| Technical Specifications | |
|---|---|
| Grade | 200 series (J1/J2/J3/J4 etc) / 300 series (304/316 etc) |
| OD (Outer Diameter) | 9 mm to 75 mm |
| Thickness | 0.58 mm to 1.5 mm |
| Finish |
|---|
| Mirror Polish |
| Matte Polish |
| Without Polish |
| Form |
|---|
| Square |
| Round |
| Rectangle |
| Oval |
| Popular For |
|---|
| Fire and Heat Resistance |
| Strength to Weight Advantage |
| Toughness and Impact Resistance |
| Ease of Fabrication |
| Aesthetic Appearance |
| Long Term Value |
| Durability |
*All weights in 20ft length
| Round Pipes | ||||||
|---|---|---|---|---|---|---|
| 200 / 300 | Size | 22 Swg | 21 Swg | 20 Swg | 18 Swg | 16 Swg |
| Sr No | 0.6mm | 0.8mm | 0.9mm | 1.15mm | 1.45mm | |
| 1 | 3/8" | 0.8 | 1.05 | 1.2 | 1.45 | 1.8 |
| 2 | 1/2" | 1.15 | 1.45 | 1.7 | 1.2 | 2.45 |
| 3 | 5/8" | 1.4 | 1.85 | 2.15 | 2.25 | 3.15 |
| 4 | 3/4" | 1.7 | 2.25 | 2.6 | 3.1 | 3.85 |
| 5 | 7/8" | 2 | 2.6 | 3 | 3.65 | 4.5 |
| 6 | 1" | 2.25 | 3 | 3.5 | 4.2 | 5.2 |
| 7 | 11/4" | 2.83 | 3.75 | 4.45 | 5.3 | 6.65 |
| 8 | 11/2" | 3.4 | 4.55 | 5.35 | 6.45 | 8 |
| 9 | 2" | 4.55 | 6.05 | 7.15 | 8.65 | 10.8 |
| 10 | 21/2" | 5.7 | 7.6 | 9 | 10.85 | 13.6 |
| 11 | 3" | 6.86 | 9.2 | 10.85 | 13.1 | 16.45 |
| Square Pipes | ||||||
|---|---|---|---|---|---|---|
| 200 / 300 | Size | 22 Swg | 21 Swg | 20 Swg | 18 Swg | 16 Swg |
| Sr No | 0.6mm | 0.8mm | 0.9mm | 1.15mm | 1.45mm | |
| 1 | 12 x 12 | 1.4 | 1.85 | 2.15 | 2.25 | 3.15 |
| 2 | 15 x 15 | 1.7 | 2.25 | 2.6 | 3.1 | 3.85 |
| 3 | 20 x 20 | 2.25 | 3 | 3.5 | 4.2 | 5.2 |
| 4 | 25 x 25 | 2.83 | 3.75 | 4.45 | 5.3 | 6.65 |
| 5 | 30 x 30 | 3.4 | 4.55 | 5.35 | 6.45 | 8 |
| 6 | 40 x 40 | 4.55 | 6.05 | 7.15 | 8.65 | 10.8 |
| 7 | 50 x 50 | 5.7 | 7.6 | 9 | 10.85 | 13.6 |
| Elliptical (Capsule) Pipes | ||||||
|---|---|---|---|---|---|---|
| 200 / 300 | Size | 22 Swg | 21 Swg | 20 Swg | 18 Swg | 16 Swg |
| Sr No | 0.6mm | 0.8mm | 0.9mm | 1.15mm | 1.45mm | |
| 1 | 25 x 12 | 1.4 | 1.85 | 2.15 | 2.25 | 3.15 |
| 2 | 33 x 13 | 2.25 | 3 | 3.5 | 4.2 | 5.2 |
| 3 | 45 x 19 | 3.4 | 4.55 | 5.35 | 6.45 | 8 |
| Rectangle Pipes | ||||||
|---|---|---|---|---|---|---|
| 200 / 300 | Size | 22 Swg | 21 Swg | 20 Swg | 18 Swg | 16 Swg |
| Sr No | 0.6mm | 0.8mm | 0.9mm | 1.15mm | 1.45mm | |
| 1 | 20x x10 | 1.7 | 2.25 | 2.6 | 3.1 | 3.85 |
| 2 | 1" x 1/2" | 2.25 | 3 | 3.5 | 4.2 | 5.2 |
| 3 | 3/4" x 1 1/2" | 3.4 | 4.55 | 5.35 | 6.45 | 8 |
| 2 | 2" x 1" | 4.55 | 6.05 | 7.15 | 8.65 | 10.8 |
